CAA-100 Series
Cable & Antenna Analyzer
ShinewayTech® CAA-100 Cable & Antenna Analyzer can test DTF / Frequency Return Loss, VSWR and Cable Loss. Users can easily evaluate the connection of cable & antenna system.
CAA-100 Series comply with 2G / 3G / 4G / 5G / WiFi systems covering frequency range from 1MHz to 6GHz and dynamic range up to 60dB.
CAA-100 Series is an essential measuring instrument for testing new generations of wireless network and indoor signal distribution.
Features
●Frequency range: 1MHz to 6GHz ; suitable for 2G / 3G / 4G / 5G / WiFi system etc.
●Dynamic Rang up to 60dB
●Intelligent limit / marker / curve calculations
●Optional electronic calibration modules
●More than 8 hours long battery life
●7 inch color LCD touch screen
●Optimized batch file management: edit / delete / filter
●Excellent Man-Machine interface for easy operation
Functions
1. Multiple Standard Measurement Mode
Power Meter, Distance-to-fault (DTF) Return Loss, DTF Voltage Standing Wave Ratio (VSWR), Frequency Return Loss, Frequency VSWR and Cable Loss testing. Main interface designs beautifully, user operation is convenient.
2. Optional Power Meter
USB high-precision power meter probe not only can connect the instrument to test and display the power, but also can connect the PC to analyize the result. Terminal power meter, In Line Digital Power Meter and In-Line digital frequency spectrum power meter can test a variety of signals, which can meet the demand of different level users.
3. Intelligent Analysis & Trace Judgment
CAA-100 Series can analyze single or multi-segment limit line, marker and the curve calculation accurately.
4.Convenient & Precise Calibrator:
(1) ECAL Electronic Calibrator (Standard)

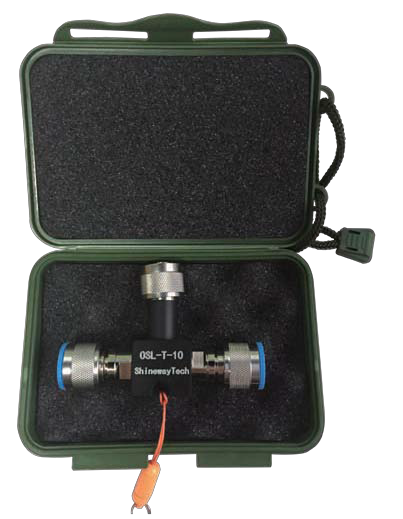

(2) 1-Port “T-type” Calibration Kit (Optional)
It can calibrate precisely and conveniently. When the calibrated data points decrease, it is no need to recalibrate, which will increase the service efficiency. Electronic calibrator ECAL provides consistent calibration results, and removes the possible error of manual calibration.
5. Instant Switching the Return Loss and VSWR
CAA-100 Series can test the return loss and VSWR simultaneously, and switch the result instantly.
6. Optimized Batch File Management Function
CAA-100 Series file filter function is easy to implement for batch editing and analyzing the results.
7. Field Calibration Cable and Obtaining the Parameters
CAA-100 Series allows user to input the cable parameters (propagation velocity, cable loss) or choose a known cable type. If user has no knowledge of the cable parameters, he can make a field calibration by the Equipment Cable Calibration Tool to get the accurate cable parameters.
8. Manually Set Frequency or Select the Preset Frequency
According to the demand, it is convenient for user to manually set or select the preset frequency.
9. Energy saving, Environmental Protection and Man-Machine Interface Design
CAA-100 Series is low-power designing, has high- capacity rechargeable lithium battery and AC adapter dual power supply, and more than 8 hours of continuous battery operation. The shortcut keys can set up four display modes: normal, black and white, highlight and night vision for different ambient.
10. CAA Workbench PC software
(1) Data Management Function
●Uploading and downloading files between the CAA- 100 host and PC
●Interact files with PC, including open the local file and save the file to the local
●Support report print preview and print. Fully display the information such as company name, test para- meters and measuring time etc.
(2) Application Tools Function
●Distance-To-Fault
●Transform into Smith Chart
●Calculator
●Edit Signal Standard
●Edit Cable Parameter
(3) Data Analysis
●Marker
●Limit line
●Scale
●Switching the Return Loss and VSWR
|
Model
|
CAA-100
|
CAA-100B
|
|
Frequency Range
|
1MHz - 4GHz
|
1MHz - 6GHz
|
|
Frequency Resolution
|
1kHz
|
|
Frequency Accuracy
|
+/-2.5ppm
|
|
Output Power
|
0dBm(typ.)
|
|
Measurement Speed
|
1.5ms/point
|
|
Data Points
|
137, 251, 551, 1103, 2207, 3310
|
|
Anti-jamming Capability
|
|
Frequency
|
-5dBm
|
|
Channel
|
+17dBm
|
|
Directivity
|
42dB (after calibration)
|
|
Return Loss
|
|
Return Loss Range
|
0 - 60 dB
|
|
Return Loss Resolution
|
0.01dB
|
|
VSWR
|
|
VSWR Range
|
1 - 65
|
|
VSWR Resolution
|
0.01
|
|
Cable Loss
|
|
Cable Loss Range
|
0 - 30dB
|
|
Cable Loss Resolution
|
0.01dB
|
|
Distance-to-Fault
|
|
Distance-to-Fault Return loss Range
|
0 - 60 dB
|
|
Distance-to-Fault SWR Range
|
1 - 65
|
|
Measuring Length
|
1500m
|
|
Resolution Ratio
|
(1.5×108) ×(Vp) / (F2 - F1 ).
Where Vp is the cable's relative propagation velocity. where F2 is the stop frequency and F1 is start frequency
|
|
Data Points
|
137, 251, 551, 1103, 2207, 3310
|
|
Electronic Calibrator
|
38dB, 1MHZ-4.4GHz; 32dB, 4.4GHz-6GHz; N(m), 50Ω
|
|
General Information
|
|
Connector Type
|
N - Type female
|
|
Input Impedance
|
50 Ohm
|
|
Display
|
7 inch resistor touch screen, resolution 800×480
|
|
Data Interface
|
One USB Host Port One USB Device Port One 10M/100M Adaptive LAN Port
|
|
Memory Space
|
16G, >2000 traces
|
|
Internal Battery
|
11.1V 7800mAh Rechargeable Lithium Battery
|
|
External Adapter
|
110 - 240V, 50 - 60Hz, AC input; 16V, 3.75A, DC output
|
|
Operating Temp. Range
|
-10°C - +50°C
|
|
Storage Temp. Range
|
-40°C - +70°C
|
|
Humidity
|
0 - 85% (Non-Condensing)
|
|
Weight
|
2.5kg
|
|
Dimensions (L x W x H)
|
290×175×75mm
|
|
DPM Module (Optional)—RF In Line Digital Power Meter
|
|
Average Power Measurement
|
|
Frequency Range
|
300-4200MHz
|
|
Power Range
|
100mW-200W
|
|
Dynamic Range (dB)
|
≥33
|
|
Insertion Loss (dB)
|
≤0.1
|
|
VSWR
|
1.05 to 99.9
|
|
Directivity
|
≥30 (<3GHz); ≥28 (>3GHz)
|
|
Accuracy
|
±4%+0.05W (0℃~+15℃ or +35℃~+50℃ increase 3%)
|
|
Impedance
|
50Ω
|
|
Connector
|
N (Female)
|
|
Data Interface
|
USB
|
|
DPM Interface
|
DB9
|
|
Peak Power Measurement
|
|
Peak Power Range
|
100mW to 500W
|
|
Peak Power Accuracy
|
Burst width >200us: ±7%; 1us<Burst width< 200us: ±10%; 0.5us<Burst width< 1us: ±15%; Burst width< 0.5us: ±20%;
|
|
Peak Average Ratio
|
0 to12dB
|
|
CCDF
|
|
Measurement Range
|
0.1 to 100%
|
|
Measurement Accuracy
|
±3%
|
|
Threshold Measurement Range
|
0.05W to 500W
|
|
Burst Power
|
|
Burst Power Range
|
100mW to 200W
|
|
Burst Width
|
1us to 60ms
|
|
Min. Measurement Frequency
|
15Hz
|
|
Measurement Accuracy
|
±6% +0.05W
|
|
Duty Cycle
|
0.0001 to 1
|
|
General Specifications
|
|
Power Supply
|
USB
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
Storage Temperature
|
-20℃ to 70℃
|
|
Relative Humidity
|
0 to 85% (Non-condensing)
|
|
Weight
|
0.48kg
|
|
Dimensions (H×W×T)
|
130×124×34mm
|
|
TPM Module (Optional)--RF Terminal Power Meter
|
|
Frequency Range
|
50 - 4000MHz
|
|
Power Range
|
-40 - 20 dBm
|
|
Maximum Power
|
<23 dBm
|
|
Measure Uncertainty
|
≤ +/-0.3dB (15°C - 35°C), ≤ +/-0.5dB( 0°C - 50°C)
|
|
Input VSWR
|
<1.2
|
|
Burst Width
|
1µs - 60ms
|
|
Min Repetition Period
|
15Hz
|
|
Video Band
|
5MHz
|
|
Minimum Pulse Width
|
200ns
|
|
Time Resolution
|
0.1µs, 1µs, 15µs, 150µs
|
|
Peak Average Ratio
|
<12dB
|
|
CCDF Range
|
0.1% - 100%
|
|
CCDF Uncertainty
|
±3%
|
|
Duty Cycle
|
0.1% - 100%
|
|
Power Supply
|
USB
|
|
Operating Temp. Range
|
0°C - 50°C
|
|
Storage Temp. Range
|
-20°C - 70°C
|
|
Humidity
|
0 - 85% (Non-Condensing)
|
|
Weight
|
0.3kg
|
|
Dimensions (L x W x H)
|
125×45×35mm
|
|
Anti-vibration Properties
|
Conform to MIL-PRF-28800F class 3
|
|
Elect. Compatibility Characteristics
|
Conform to EMC GB/T 18268-2000
|
*Specifications subject to change without notice.
Order Information
Standard Package:
CAA-100 Host, Lithium Battery, AC Adapter, CD (PC Software, User Manual), Carrying Case, ECAL Electronic Calibrator, Test Cable ( 1.5m, N(m)-N(f), DC to 6GHz, 50 Ohm), Adapter ( 7/16 DIN(f)-N(m), DC to 6GHz, 50 Ohm), Quick Reference, Warranty Card.
Optional (Module, Test Cable, Adapter, Calibrator)
Modules:
●DPM Module (Optional)--RF In Line Digital Power Meter
●TPM Module (Optional)--RF Terminal Power Meter
Test Cables:
●1.5m, N(m)-N(f), DC to 6GHz, 50 Ohm
●1.5m, N(m)-N(m), DC to 6GHz, 50 Ohm
●1.5m, N(m)-7/16 DIN(f), DC to 6GHz, 50 Ohm
●1.5m, N(m)-7/16 DIN(m), DC to 6GHz, 50 Ohm
●3m, N(m)-N(f), DC to 6GHz, 50 Ohm
●3m, N(m)-N(m), DC to 6GHz, 50 Ohm
Adapters:
●SMA(m)-N(m), DC to 6GHz, 50 Ohm
●SMA(f)-N(m), DC to 6GHz, 50 Ohm
●SMA(m)-N(f), DC to 6GHz, 50 Ohm
●SMA(f)-N(f), DC to 6GHz, 50 Ohm
●BNC(f)-N(m), DC to 6GHz, 50 Ohm
●7/16 DIN(f)-N(m), DC to 6GHz, 50 Ohm
●7/16 DIN(f)-N(f), DC to 6GHz, 50 Ohm
●7/16 DIN(m)-N(m), DC to 6GHz, 50 Ohm
●7/16 DIN(m)-N(f), DC to 6GHz, 50 Ohm
●7/16 DIN(m)-7/16DIN(m), DC to 6GHz, 50 Ohm
●7/16 DIN(f)-7/16DIN(f), DC to 6GHz, 50 Ohm
●N(m)-N(m), DC to 6GHz, 50 Ohm
●N(f)-N(f), DC to 6GHz, 50 Ohm
●N(m) 50Ohm – N(f) 75Ohm, DC to 3GHz
●N(f) 50Ohm – N(m) 75Ohm, DC to 3GHz
Calibrator:
●T-type Calibration Kits
