MTP-200X
Hand-held High Performance OTDR
ShinewayTech® MTP-200X series is the compact multi-functional platform, with 8 inch high-resolution touch screen, which are specially designed for FTTx / WAN applications and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting.
It is convenient and accurate for auto/manual testing, multi-wavelength testing and multifunctional analysis.

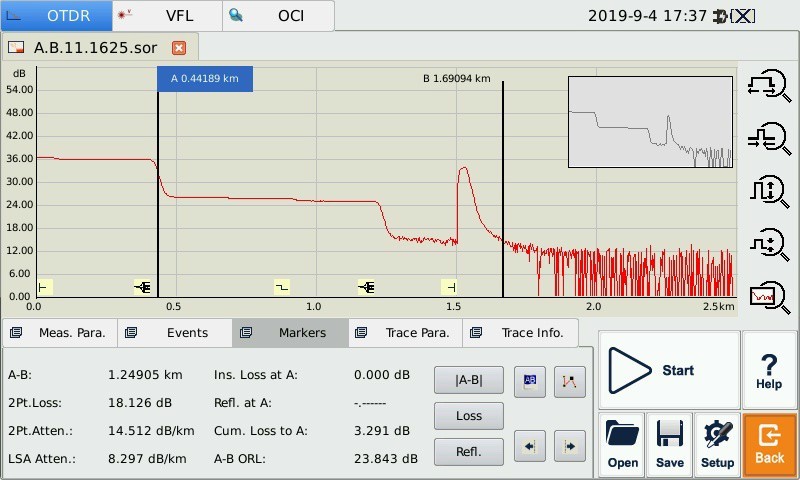

Multi-Function and High Performance OTDR Testing
● Dynamic range up to 50dB
● Short zone: EDZ 0.8m, ADZ 4m
● Auto / manual test and analysis
● Multi-wavelength testing
● Visual fault locator function
● SOR, JPG and PDF file format
● Flexible file naming
● GR-196-CORE (.SOR) file format
● In-Line test and through splitter test (1625/1650nm with filter)
● OTDR module up to four wavelengths, SM/MM option
● Fault locating, fiber length / loss / return loss measurement, connector / splice / splitter / macro bend / fiber-end detection

Optimized Platform Performance
● Lightweight, 1.5kg with battery
● 8 inch touch screen
● High strength protect horn
● Excellent Man-Machine interface
● Easy operation
● Optimized power management: 10 hours continuous operation
● Remote/local control by PC (Optional)

High Resolution 8 inch Color Touch Screen
● 8 inch touch screen
● Damp-dust-shock proof
● Quick response, clear display and convenient operation.
Link Image (LM100) – REMOVING THE COMPLEXITY FROM OTDR TESTING
Link Image software helps technicians use an OTDR more effectively, without the need to understand or interpret OTDR results. It converts the graphic data points obtained from traditional single pulse trace into reflective or non-reflective icons which gives users a schematic view of the entire link.
● Icon-based fiber link view of all events
●Automatic pass/fail results
●Eliminates the need for OTDR expertise

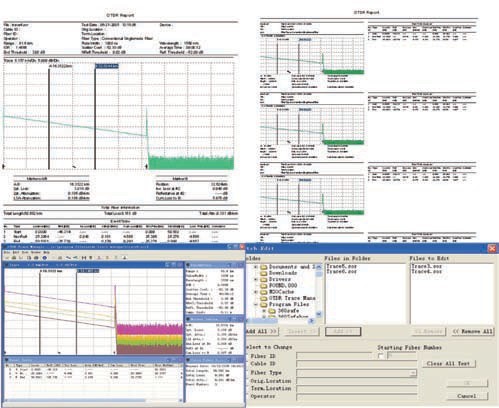

MTP Suite PC Software
●Multi traces analysis and comparison
●Batch editing and printing
●CSV report formats

Network Remote Control Module (Optional)
●Remote control instrument operation

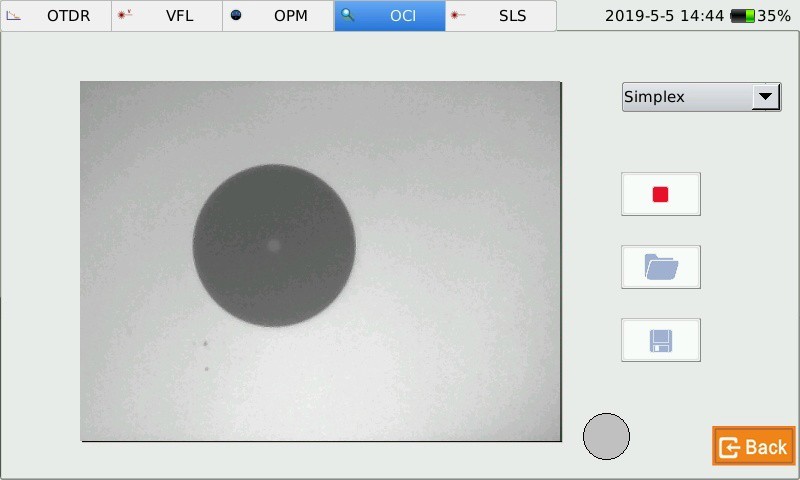

Optical Connector Inspector Module (Optional)
●Focusing knob for fast focus
●Eye-safe and clear video viewing
●Interchangeable connector tips

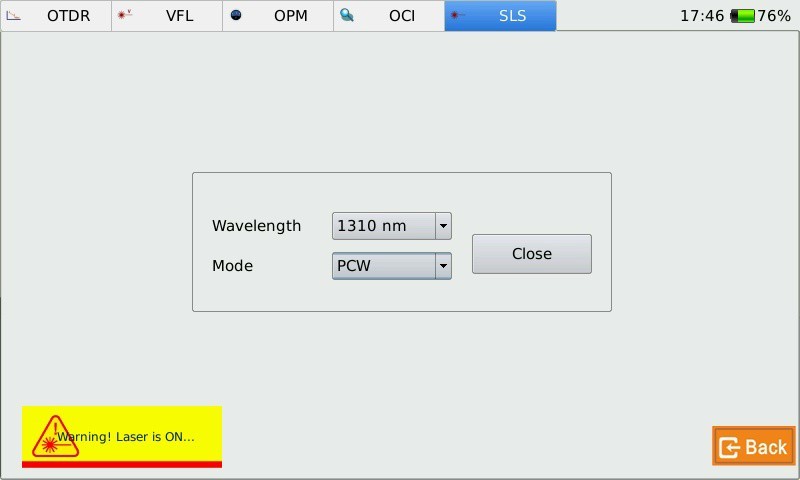

Stabilized Laser Source Module (Optional)
●Wavelength same as the OTDR
●High precision and easy operation

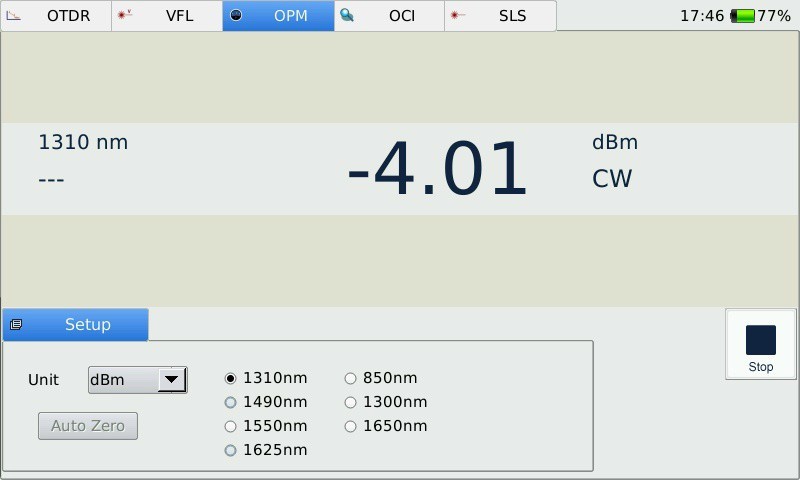

Optical Power Meter Module (Optional)
●Multi-wavelength calibration
●High precision
●Convenient operation

Applications
●FTTx / PON Networks
●Local Area Networks (LAN)
●Metropolitan Area Networks (MAN)
●Long Haul Networks
Model
|
MTP-200X Series
|
Display
|
8- inch Color Touch Screen (800×480)
|

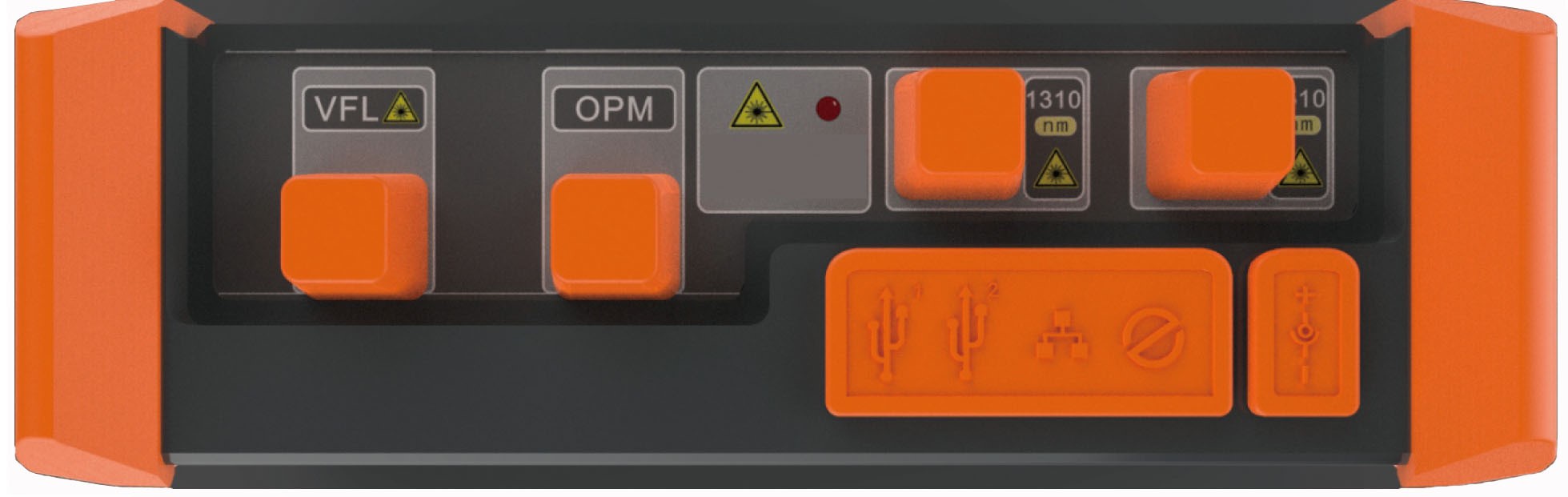

Connectivity
|
USB×2; 10/100Mbit/s RJ-45×1
|
Memory
|
8GB
|
Power Supply
|
Rechargeable Li-Ion Battery/AC Adapter
|
Battery Life
|
10 hours continuous operation
|
Working Temp.
|
-20°C - 50°C
|
Storage Temp.
|
-40°C - 60°C
|
Humidity
|
0 - 95% (Non-Condensing)
|
Weight
|
1.5kg
|
Dimensions (L×W×H )
|
235×159×75mm
|
OTDR Module
|
Wavelength (±20nm)
|
Dynamic Range (dB)(1)
|
EDZ (m)(2)
|
ADZ(m)(2)
|
MTP-200X-20VC
|
1310/1550
|
38/37
|
0.8
|
4
|
MTP-200X-20VD
|
1310/1550
|
45/43
|
0.8
|
4
|
MTP-200X-20VF
|
1310/1550
|
50/48
|
0.8
|
4
|
MTP-200X-31VCPL
|
1310/1550/1625
|
43/41/40
|
0.8
|
4
|
MTP-200X-33VCPL
|
1310/1550/1650
|
42/40/39
|
0.8
|
4
|
MTP-200X-40VC
|
850/1300/1310/1550
|
23/28/38/36
|
1
|
4.5/4.5/4/4
|
Selectable Range
|
SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km
|
MM: 1.3, 2.5, 5, 10, 20, 40Km
|
Pulse Width
|
SM: 5ns,10ns, 30ns, 100ns, 300ns,1µs, 2.5µs,10µs, 20µs
|
MM: 5ns, 10ns, 30ns, 1µs, 2.5µs
|
Averaging Time
|
Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s
|
Emitter Type
|
LD
|
Connector
|
FC/PC (Interchangeable SC, ST and LC )
|
Distance Measure Accuracy
|
±(1m + 10-5×distance + sampling spacing)
|
Attenuation Detect Accuracy
|
±0.05 dB/dB
|
Reflection Detect Accuracy
|
±4 dB
|
Visual Fault Locator
|
Output Power: ≥ -3dBm
|
MOD Frequency: 1Hz
|
Detecting Range: 5Km
|
MCI100 Optical Connector Inspector Module (Optional)
|
Field of View
|
400µm×300µm
|
Resolution
|
≤1.5µm
|
Focusing
|
Manual Focus
|
Microscope Dimensions
|
Ø32×175mm
|
LS100 Stabilized Laser Source (Optional)
|
Wavelength (±20nm)
|
Same as OTDR’s
|
Output Power
|
≥-7dBm
|
PM100 Normal Power Meter Module (Optional)
|
Calibrated Wavelength
|
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
|
Measurement Range
|
-70dBm~ +6dBm (-60dBm - +6dBm @ 850nm)
|
Detector Type
|
InGaAs
|
Display Resolution
|
0.01dB
|
Accuracy
|
± 5% ± 0.01nW (±0.5dB@850nm)
|
*Specification subjects to change without notice.
Notes:
(1) Dynamic range measurement at 20µs pulse width and 180s averaging time;
(2) Dead Zone measurement at 0.6Km and reflection <-45dB; EDZ measurement at 5ns, ADZ measurement at 10ns.
Order Information
Standard Package:
MTP-200X Host, Lithium Battery, CD (Software & User Manual), AC Adapter, Carrying Case, Warranty Card, Calibration Certificate.
Optional Modules:
●LS100: Stabilized Laser Source Module (as OTDR)
●PM100: Optical Power Meter Module
●MCI100: Optical Connector Inspector Module
●RC100: Remote Control Module
●LM100: Link Image Module
